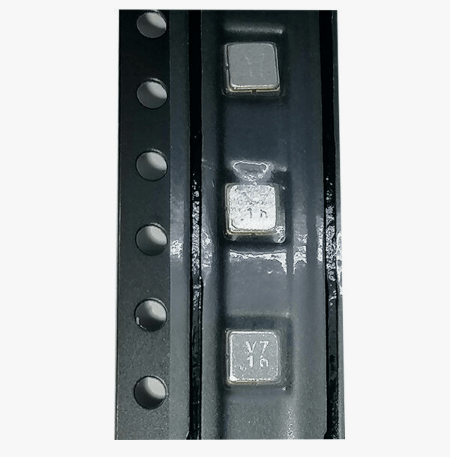

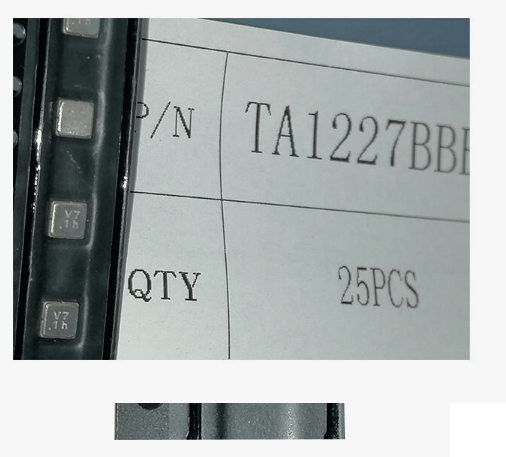

TA1227BB 1.227GHz LTE SAW RF Filter 6-SMD (20MHz Bandwidth)

Description

Product Description

The TA1227BB is an original surface acoustic wave (SAW) RF filter designed for LTE applications and high-frequency signal conditioning. Operating at a center frequency of 1.227GHz, it provides precise band selection by allowing a defined frequency range to pass while suppressing unwanted signals and interference.

Built for compact RF front-end designs, this component supports stable performance in wireless communication systems, including LTE modules and RF transceiver circuits. With low insertion loss and a tight bandwidth specification, it is suitable for applications requiring signal clarity and controlled frequency filtering in space-constrained PCB layouts.

Features

• Original SAW RF filter designed for LTE applications
• Center frequency of 1.227GHz for targeted RF signal filtering
• 20MHz bandwidth for precise frequency selection
• Low insertion loss of approximately 2.2dB
• Supports up to 20dBm input power level
• Operating voltage: 3V DC
• High reliability with MSL 1 moisture sensitivity rating
• Stable performance across industrial temperature range
• Compact 6-SMD no-lead surface mount package

Measurements

• 1 Strip contains 500 pieces
• Model: TA1227BB
• Category: RF SAW Filter
• Frequency (Center): 1.227GHz
• Bandwidth: 20MHz
• Insertion Loss: 2.2dB
• Input Power Level: 20dBm
• Operating Voltage: 3V DC
• Operating Temperature: -40°C to +85°C
• Storage Temperature: -40°C to +85°C
• Package Type: 6-SMD, no lead
• Dimensions: 3.00mm × 3.00mm (0.118″ × 0.118″)
• Height: 1.40mm max
• Moisture Sensitivity Level: MSL 1
• Mounting Type: Surface mount
• Product Status: Active
• Packaging: Bulk

In The Box

• 1 x TA1227BB SAW RF Filter (6-SMD component)
• 1 x Anti-static sealed packaging
